    High Speed Engineering Machinery Horizontal Drilling Rig

    Ask Lasest Price
    Model Number : XY-1A
    Price : Negotiation
    Delivery Time : 10-20 days working days
    Payment Terms : T/T, L/C, T/T, Western Union
    Brand Name : OEM
    Certification : ISO,CE
    Supply Ability : Based on the detailed quotation
    • Product Details
    • Company Profile

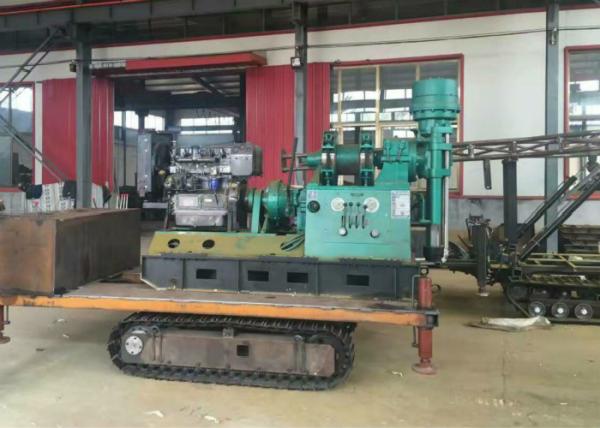

    High Speed Engineering Machinery Horizontal Drilling Rig

    High Speed Engineering Machinery Horizontal Drilling Rig

    Features:
    ♦ With hydraulic feeding device, elevated drilling efficiency, reduced labor strength.
    ♦ The rig is equipped with an upper spherical jaw holding mechanism and hexagonal drive drilling rod which can be replacedwithout shutdown, high efficiency, safe and reliable.
    ♦ A hole bottom pressure gauge is mounted indicating the pressure in order to control the status inside the hole
    ♦ Compact structure,small volume,lightweight,high detachability,easy transportation and suitable for the operations in plains ormountion areas.

    Product Description

    XY-1A Horizontal Directional Drilling Rigs is a light type machine at high speed withhydraulic feeding. XY-1A (YJ) and XY-1A-1 are designed on the basisof XY-1 A.
    Applications:
    ♦ Drillings for the general exploration and investigation of solidmineral deposit, engineering geotectonic survey and concretestructure inspection holes.
    ♦ Diamond drill bit, alloy drill bit and steel roller drill bit and so on areavailable for drilling according to different geological structures.
    ♦ When the final holes are respectively 75mm and 46mm in diameter,the rated hole depths are separately 100m and 180m. Themaximumof depth may not

    exceed 110% of that drilled in each hole.Themaximum allowable hole diameter is 150 mm.

    Main parameters

    Unity machine parameter
    Drilling depth30--180m
    Drill rod caliber50 42mm
    End hole caliber75 46mm
    Max. open hloe caliber220mm
    Drilling angle90°~75°
    Drill weight (No include power)610kg
    Unity machine dimensions2.1*0.9*1.3m
    Spindle
    spindle speed130, 300, 480, 730, 830, 1045r/min
    Spindle stroke450mm
    Hoist
    Max.single line hoisting capacity1600kg
    Single line lifting speed1.06, 0.67, 0.32m/s
    Wirerope caliber13mm
    Wirerope cubic measure35m
    Hug floodgate caliber254mm
    Hug folldgate belt width50mm
    Distance between drill and hole230mm
    Mud pump
    TypeHorizontal single urn twin-action
    Displacement170L/min
    Maximum pressure1.5Mpa
    Work pressure0.7Mpa
    Power
    Diesle engineS1105 18HP
    Electric motorY160M—4 15KW
