    XY-1A 180m Water Well Horizontal Directional Drilling Rigs

    Ask Lasest Price
    Model Number : XY-1A
    Price : Negotiation
    Delivery Time : 10-20 days working days
    Payment Terms : T/T, L/C, T/T, Western Union
    Brand Name : OEM
    Certification : ISO,CE
    Supply Ability : Based on the detailed quotation
    • Product Details
    • Company Profile

    XY-1A 180m Water Well Horizontal Directional Drilling Rigs

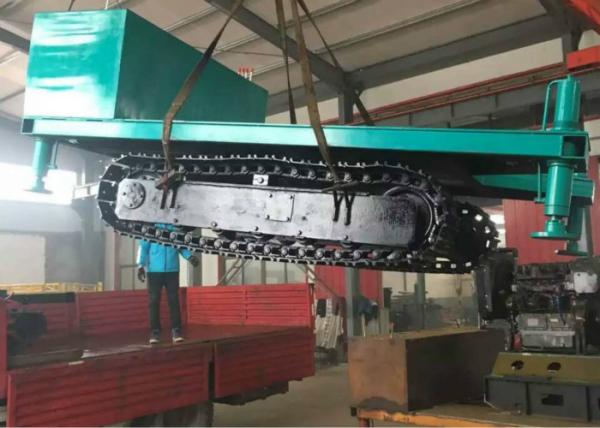

    Water Well Horizontal Drilling Machine , XY-1A Crawler Mounted Drill Rig
    Product Description

    The XY-1A drilling rig is a kind of widely used and hydraulic feeding drill, which has the characteristics of big power, great lifting force (2T) and high transmission torque.


    1 Engineering geological investigation of railways, hydropower, traffic, bridges, dam foundations and other buildings.


    2 Geological core drilling, physical prospecting.

    3 Small grout Confucius, drill hole drilling.

    4 Small well drilling.


    Technology Parameter

    Unity machine parameter
    Drilling depth30--180m
    Drill rod caliber50 42mm
    End hole caliber75 46mm
    Max. open hloe caliber220mm
    Drilling angle90°~75°
    Drill weight (No include power)610kg
    Unity machine dimensions2.1×0.9×1.3m
    Spindle
    spindle speed130, 300, 480, 730, 830, 1045r/min
    Spindle stroke450mm
    Hoist
    Max.single line hoisting capacity1600kg
    Single line lifting speed1.06, 0.67, 0.32m/s
    Wirerope caliber13mm
    Wirerope cubic measure35m
    Hug floodgate caliber254mm
    Hug folldgate belt width50mm
    Distance between drill and hole230mm
    Mud pump
    TypeHorizontal single urn twin-action
    Displacement170L/min
    Maximum pressure1.5Mpa
    Work pressure0.7Mpa
    Power
    Diesle engineS1105 18HP
    Electric motorY160M—4 15KW
