    HYDX -4 145kw Crawler Type Plaform Type Core Drilling Rig

    HYDX -4 145kw Crawler Type Plaform Type Core Drilling Rig

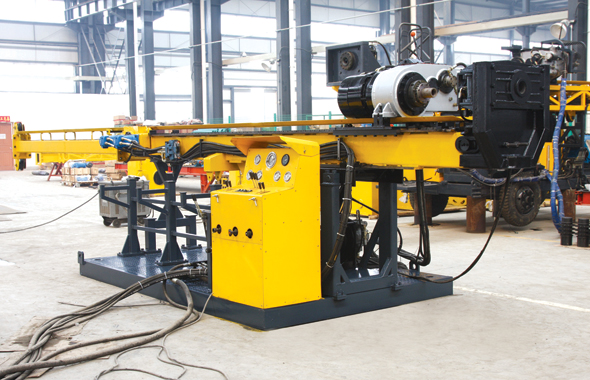

    The HYDX-4 hydraulic core drilling rig of full hydraulic and rotator adopted the technology of wire-line coring, has been the dominant type rig for solid mineral deposits prospecting in developed counties in the world. It is also the developing direction of drilling technique and drilling equipment in China.


    This type of hydraulic geological drill rig could substitute imported products. It could be applied to exploration and prospecting of geology, metallurgy, coal, petroleum, natural gas, groundwater and other industries.


    The HYDX-4 hydraulic core drilling rig is equipped with a series motor driving pump. The feeding and lifting of rotator are driven in the structure of cylinder directly pushing, with a 3.5m (11.5 feet) stroke.


    The rotation of spindle is driven by a single engine. It has four mechanical shifts of range of speeds, and the speed could be adjusted hydraulically with steeples change. The hydraulic geological drill rig is simple in structure.


    It is light and easy for transference; the mast has the functions of sliding and touching ground; the spindle lifted and lowered with hydraulic cylinder; it could be folded for transport and relocation. The spindle hole is in large diameter.


    Ⅱ. Main Parameters


    Primary Pump Hydraulic Tank Capacity of Main Capacity of Wireline Hoist Foot Clamp Others


    Diesel Engine of HYDX-4 hydraulic core drilling rigModelCummins 6BTA5.9-C180 (turbocharged and charge water cooled)
    Displacement5.9L (1.56 US Gallons)
    Power132Kw (180HP)
    Rated RPM (Factory setting)2200rpm
    Drilling Capacity of hydraulic geological drill rigBQ hydraulic core drilling rig1000m(3280feet)
    NQ hydraulic core drilling rig700m(2296 feet)
    HQ geological drill rig500m(1640 feet)
    PQ hydraulic geological drill rig300m(984 feet)
    Rotation MotorHydraulic Motor-variable Maker: SAUER-DANFOSS
    RPMFour Shifts/ Steeples Change 0-1100 RPM
    Ratios1st 14.422:1 2nd 8.171:1 3rd 4.519:1 4th 2.652:1
    Drill Head HYDX-4 hydraulic core drilling rigHead OpenerPivoting style, Manual actuated
    Hydraulic Chuck(PQ)Hydraulically opened, Disc Spring Clamping, Normally C Closed Type Axial Holding Capacity of 222 400 N
    Max. Torque hydraulic geological drill rig3700 N·m(2727 lbf·ft)
    Hold Diameter121 mm(4.76 inch)
    Max. Lifting capacity of Spindle150 kN(33720 lbf)
    Max. Feeding Power HYDX-4 hydraulic core drilling rig60 kN(13480 lbf)
    Hydraulic pump Axial Piston variable displacement Triplex pump for driving of rotator, winch mud pump & leveling jacks. With load sensing system.Maker: DANFOSS 1st Pump: 148LPM at 31.5MPa 2nd Pump:120LPM at 28MPa 3rd Pump: 50 LPM at 16MPa
    Capacity HYDX-4 hydraulic core drilling rig310 L (82 US Gallons)
    Hoisting force (single wire)57kN(12814 lbf) (bare drum)
    Hoisting Speed (single wire)38-70m/min(bare drum)
    Hoist hydraulic geological drill rigSteel Wire Diameter18 mm(0.71 inch)
    Steel Wire Length50 m(164 feet)
    Hoisting Force (single wire)1200 Kg(2646 lb) (bare drum)
    Hoisting Speed (single wire)60-90m/min (bare drum)
    Steel Wire Diameter5.3 mm(0.2 inch)
    Steel Wire Length1000 m(3280 feet)
    Mast Height9.6 m(31.49 feet)
    Mast Adjusting Angle0°—90°
    Drilling Angle45º off horizontal to 90ºvertical down
    Feed Pull15000kg(33075 lb)
    MastFeed Thrust6000kg(13230 lb)
    Rod Pull3m or 6m(9.84feet or 19.68feet)
    Feeding Stroke3500 mm(137.80 inch)
    Slippage Stroke600 mm(23.62 inch)
    TypeReciprocating pump Triplex Plunger
    Mud PumpModelBW160/10
    Stroke70mm(2.76 inch)
    Discharge pressure2.5, 4.0, 6.5, 10.0 Mpa (363, 580, 943, 1450 psi)
    Clamping Scope55.5-110 mm(2.19-4.33 inch) through hole Ф154mm(6.06 inch)
    Weight (platform type)9300 Kg(20506 lb)
    OthersDimensions (L×W×H)5100×2200×2650mm (200×86.6×104.3 inch)
    Transport WayCrawler
