    High Pressure Crawler Mounted Drill Rig

    High Pressure Crawler Mounted Drill Rig


    The KH5 high pressure eco-friendly crawler drilling rig is designed on the basis of KY130 drilling rig. A dry type dust collector is added to the KY130 machine. In the dust collecting system, we adopt an imported hydraulic motor and the fan blades are optimized. Thus the system is highly efficient and stable. The prefiltering and fine filtering mechanism are made of eco-friendly and efficient filtering material. The filtering efficiency can reach 99%. The collected dust and powder can be expelled by the excellent automatic control system.


    Feature

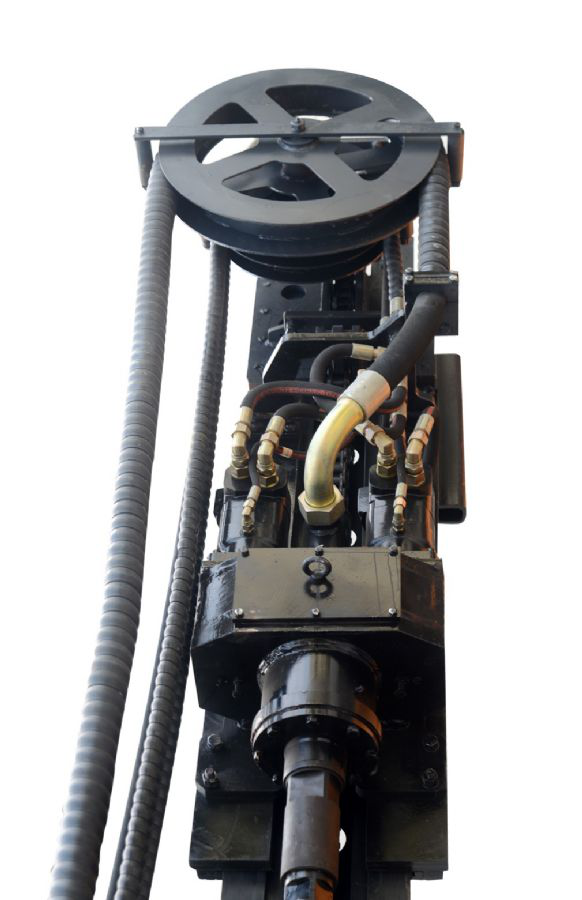

    1. Powerful rotating devices
    The new type rotating device of our crawler drilling rig consists of large torque cycloid hydraulic motor, planetary reducer, providing plenty of torque reserve. Thus the drill rod blocking risk is greatly reduced.


    2. New type drill arm
    After optimization, the jib lubbing mechanism and round drill arm are easy to be adjusted. The covered operation area is extended to a large degree, and the horizontal hole can be drilled at a low position.


    3. Excellent propulsion mechanism
    The propulsion mechanism of the crawler drilling rig comprises with hydraulic oil cylinder and moveable pulley, and can produce 20KN lifting force. The pressure regulating valve on the propulsion regulating valve can get proper propulsion force needed for different working environments.


    4. Safe and stable walking mechanism
    As a powerful borehole driller, this crawler drilling rig has low barycenter and big ground clearance, so it can easily pass bumpy roads. The wheels are driven by special motors, leading to high gradeability and low fault rate.


    5. Advanced crawler leveling function and braking system
    Advanced crawler leveling function and braking system can make the walking process very stable. The impact to the road is also greatly elevated. Besides, the crawler drilling rig can walk more stably.


    6. Powerful diesel engine
    As a professional borehole drilling solution provider, we choose the YC4108 type four-cylinder diesel engine for the KH5 crawler drilling rig as the power supplier. The engine has high environmental adaptability. It can provide great power for the rig. So there is no need for extra air compressor for freely walking and changing position.


    Specifications

    ModelKH5 drilling rig
    Rock hardnessF = 6-20
    Hole diameterФ105-140mm
    Economical drill depth25m
    Pressure1.0-2.4Mpa
    Air consumption≥15m³/min
    Rotating speed0-70r/min
    Rotation torque2000N.m
    Lifting capacity20000N
    Propulsion typeHydro-Cylinder-Chain
    Propulsion length3000mm
    Propulsion speed530mm/s
    Drill rod specificationΦ76×3000mm/Φ89×3000mm
    Gradeability30°
    Ground clearance320mm
    Walking speed0-2km/h
    Drill arm rising anglesDown 25°, up 45°, total 70°
    Drill arm swing angleLeft 45°, right 45°, total 90°
    Carriage swing angleLeft 50°, right 50°, total 100°
    Carriage pitch angle180°
    Max. frame floating angle±10°
    Carriage compensation1200mm
    Diesel engineYC4108 (58kW, 2400r/min)
    Overall dimension (L×W×H)5400×2330×2020 mm
    Total weight6500kg
    NotePneumatic-hydraulic driving mechanism, dry type dust collector, and speed reducer are available.

    Recommend parts for KH5 high pressure eco-friendly crawler drilling rig
    Drill bit: Φ115
    Drill hammer: HD45A
    Drill rod: Φ76×3000mm
