SRKW180 180m Geothermal Water Well Crawler Drilling Rig
Products Details
SRKW180 Geothermal Water Well Crawler Drilling Rig is a light, highly-efficient and multifunction drilling device, characterized by advanced structure, convenient use, high operating efficiency, reliability and durability, extensively applicable to drilling water wells, agricultural irrigation wells, geothermal air-conditioning wells and well holes of other purposes, especially applicable to water intake projects in mountain regions and at rock stratums.
This drill adopts state-of-the-art hydraulic technology, and is equipped with large-torque hydraulic motor rotation and large-bore hydraulic cylinder propulsion, dramatically reducing labor intensity, shortening the assistant time, and improving construction efficiency and engineering quality.
Product Specification
Drilling depth maximum | m | 180 |
Drilling diameter | mm | φ110-202 |
Working wind pressure | mp | 1.05-2.46 |
Air consumption | m3/min | 16-30 |
Drill rod length | m | 2 |
Dia. of drill rod | mm | φ89/φ76 |
Propeller shaft pressure | t | 0~2.5 |
Lifting force | t | 5 |
Cylinder tensile force | t | 32(4pcs) |
Propeller shaft pressure | m | 0.4 |
Slide stroke | mm | 2380 |
Slow lifting speed | m/min | 8 |
Slow forward speed | m/min | 0~15 |
Fast lifting speed | m/min | 26 |
Fast forward speed | m/min | 51 |
Rotary output torque | N·m | 4200 |
Rotary output speed | Rev / min | 33~67 |
Hoist lifting force | t | --- |
Diesel engine | ---- | YC4D80 |
Parameter of engine | ---- | 58Kw/2400rpm |
Travel speed | km/h | 0~2.5 |
Climbing capacity | ℃ | 20 |
Weight | t | 4.5 |
Overall dimesion | m | 2.7×1.55×2.35 |
Applicable condition | Loose layers and bedrock | |
Drilling mode | Rotation hydraulic pressure | |
Supporting impactor | Medium-high pressure series | |

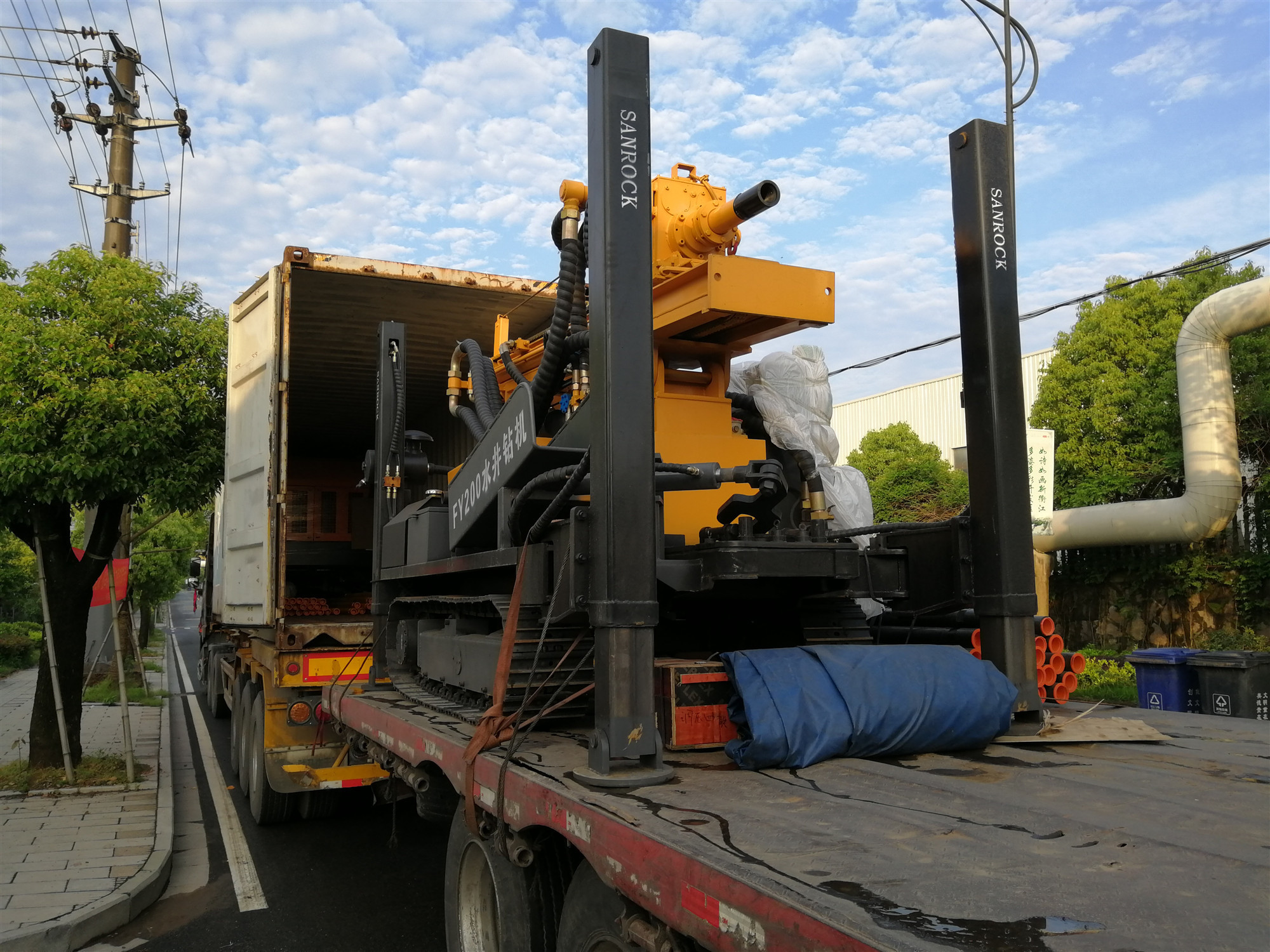

Product Package
|
